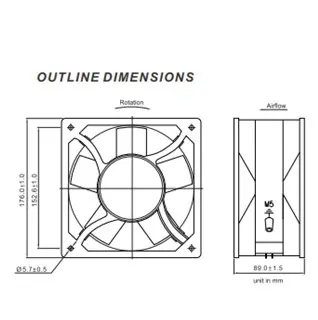

  • KT18089 DRAW
  • KT18089 CURVES

AC Fan 176 x 89 KT KT18089220BH

(KT18089220BH)
0

Quantity:
Add to Quote
Specifications:
  • Fan Size: 176
  • Width: 89
  • Bearing: 2B
  • Rated Voltage: 230 (VAC)
  • Operating Frequency: 50/60
  • Speed (RPM): 2650/3200
  • Max. Airflow (CFM): 344.8/397.2
  • Static Pressure (mm of H2O): 15.9/20.7
  • Current (mA): 0.57/0.48
  • Power Consumption (W): 43.0/52.0
  • Life at 40°C L10 (Hours): 40000
  • Noise Level (dB): 61.1/64.8

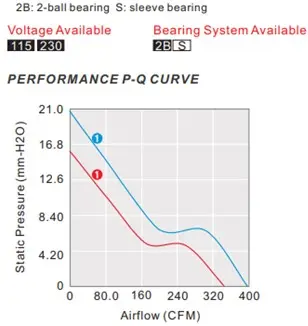

  • P/Q Curve: 1/1
AC Fan 176 x 89 KT KT18089220BH from YS Tech USA features KT18089220BH, 176 x 89 KT, 230 VAC specifications to provide excellent thermal solutions for you. Our standard and custom design capabilities help us create high-performance AC Fan 176 x 89 KT KT18089220BH that meet all your needs.
